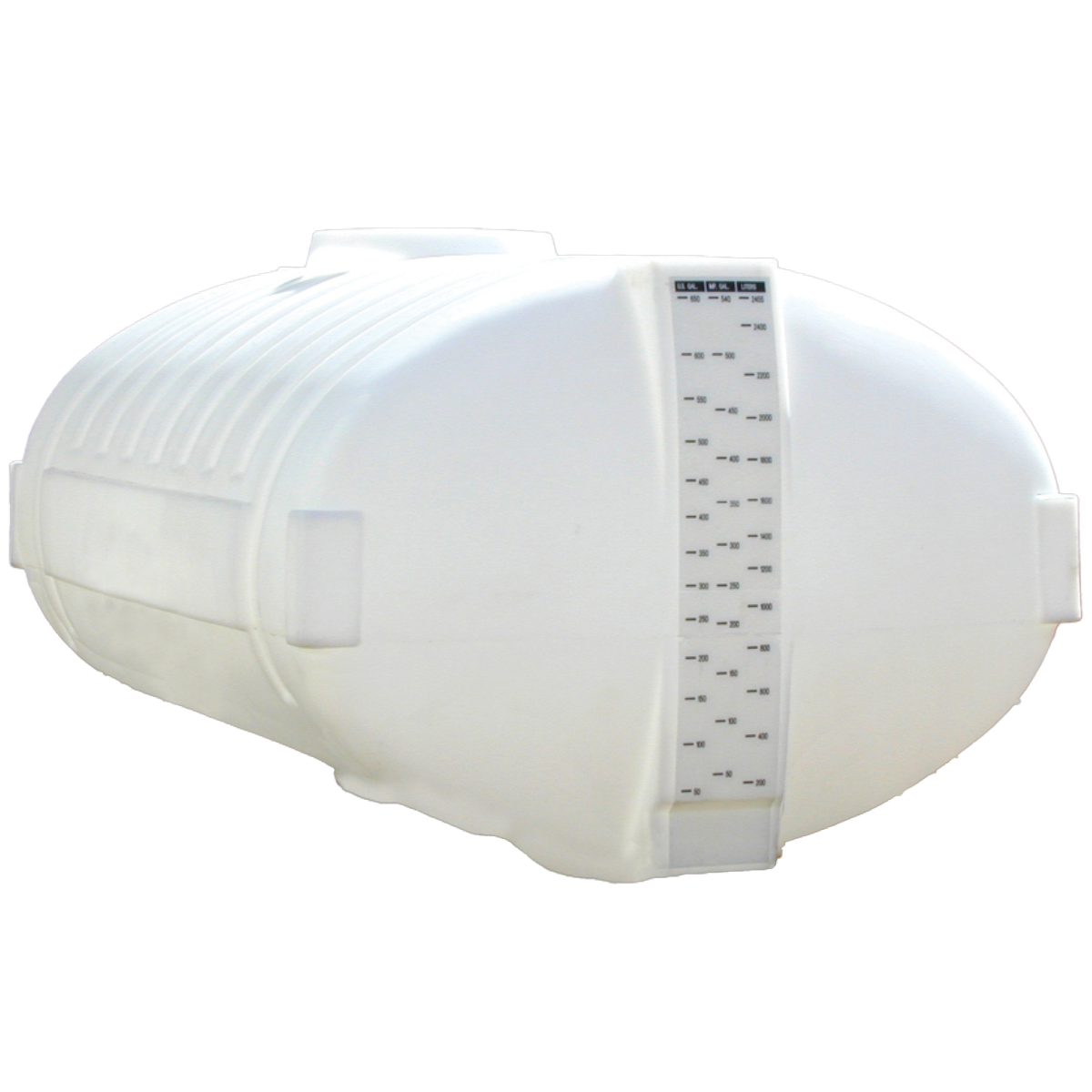

Elliptical sprayer tanks are available in translucent white or black. (Black eliminates algae formation.) All translucent and black tanks are potable and manufactured from materials that meet FDA Regulations 21 CFR 177.1520 and may be used to contain materials for human consumption.
All tanks have UV20 protection to prevent deterioration from sunlight and come standard with a 16″ vented lid and a gallon indicator. The 540 and 833 imp. gal. tanks are typically used to contain liquids with densities up to 14 lb per gallon. The 1600 imp. gal. tank is heavy duty rated for liquids up to 20 lb per gallon.
The Elliptical sprayer tanks carry a one (1) year warranty against defects in workmanship.

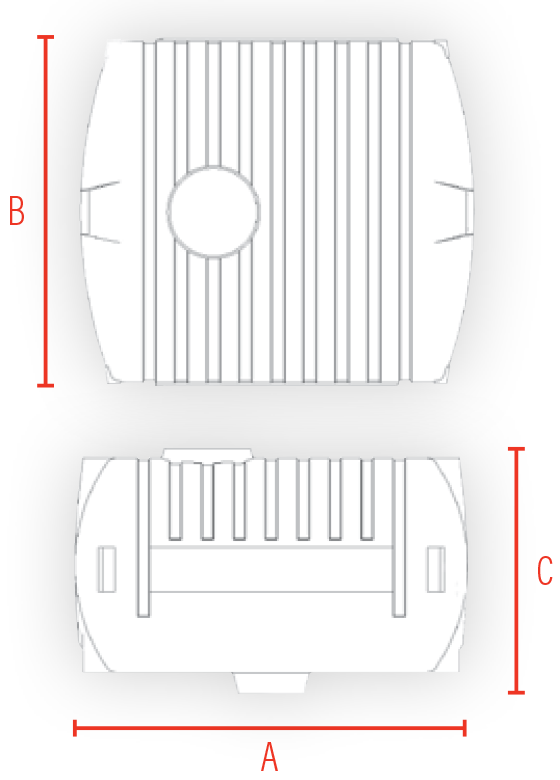

| Capacity | Specifications | Tank | Saddle | ||||
|---|---|---|---|---|---|---|---|
| Imp. Gal. | US Gal. | Dim. A | Dim. B | Dim. C | Lid Size | Part Number | Part Number |
| 1600 | 1920 | 89" | 91" | 87" | 16" | 1089 | 7941-15 |
| 833 | 1000 | 90" | 79" | 52" | 16" | 1039 | 8057-94 |
| 540 | 648 | 90" | 60" | 46" | 16" | 1154 | 8100-01-12 |
| Model | Tank Size (Imp. Gal.) |
|---|---|
| Convertabar SI | 833 |
| Convertabar SII | 833 |
| 540 Versabar | 833 or 540 |
| Centurion I | 833 |
| Centurion II | 833 |
| Centurion III | 833 |
| Exterminator | 833 |
| Eliminator 540 | 540 |
| Eliminator 950 | 833 |
| Eliminator 1450 | 1250* |
| Eliminator 1460 | 1250* |
| Eliminator 1850 | 1600 |
| LFC2000 Liquid Cart | 1600 |
