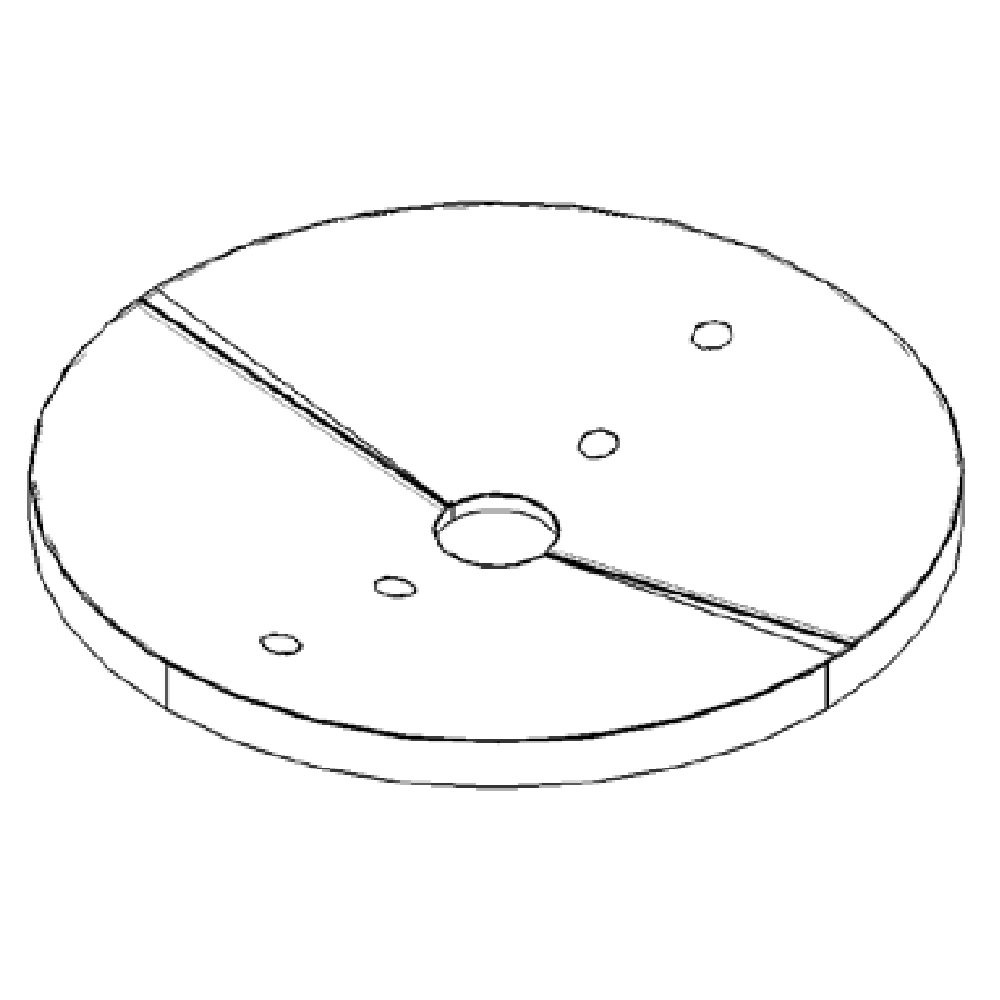

Stationary Cone Bottom Tank Cradle

Stationary Cone Bottom Tank Cradle

Suitable for fabricating stationary cone stands.
Optimal 10° slope angle.
Will fit most tanks with 10° cone.
Supplied unpainted.
Handles liquid fertilizer tanks up to 3700 imp. gal.
Cradles available for 1250, 1400, 1500, 2000, 2500 and 3700 imp. gal. tank sizes (1500, 1680, 1800, 2400, 3000, 4440 U.S. gal.)
Tanks can be secured to the cradle with optional nylon straps and ratchets.

Specifications

Diameter	Height	Weight (lb)	Part Number
101"	10"	480	1285
88"	9"	375	1368

Product Documentation

Stationary Cone Bottom Tank Stands Brochure
